CONNECTORS & RECEPTACLES
POWER INLET SOCKET PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

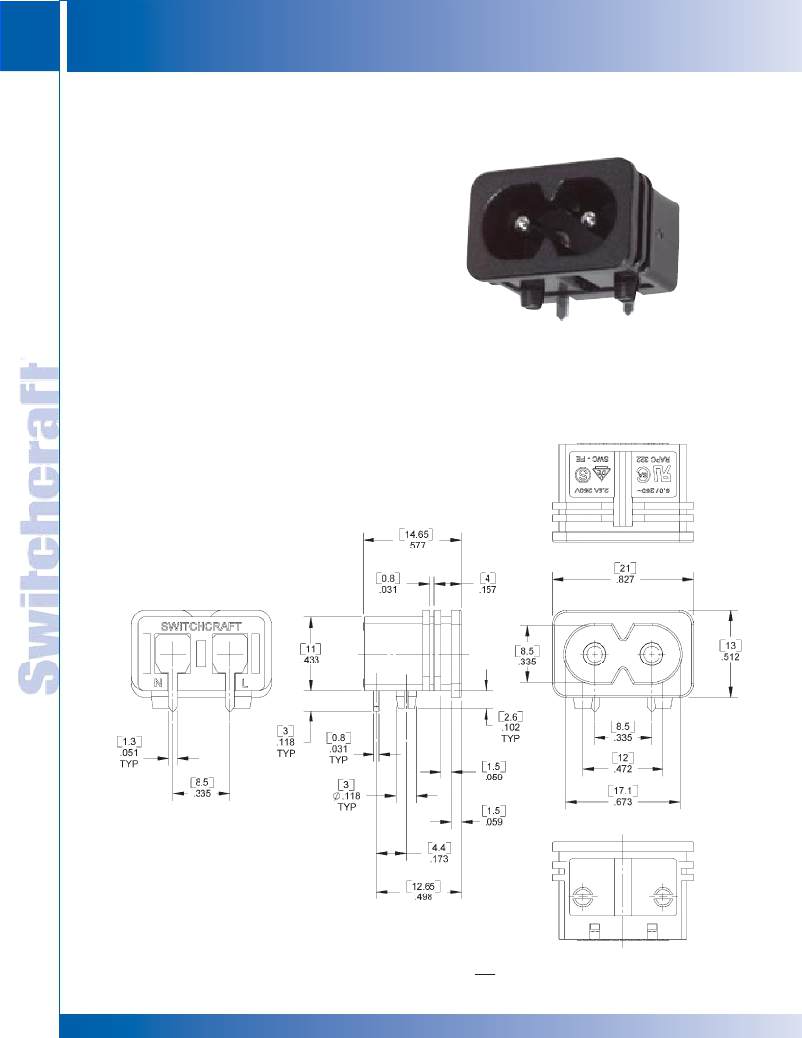

RAPC322 POWER INLET SOCKET
Switchcraft introduces the RAPC322, an IEC320 inlet
developed as a low power interconnect used in a variety
of applications. The RAPC322 is molded from 94-VO
rated material, is UL recognized, and meets a wide variety
of approvals including CSA and VDE. The RAPC is rated
at 2.5A at 250V. Applications for the RAPC322 include
notebook computers, medical devices, and data
communications products.
FEATURES AND BENEFITS
? Snap-in feet facilitate wave soldering
? Top and side slots allow chassis to captivate connector
? Conforms to EN 60320-1/2
APPLICATIONS
? Appliance Inlet
? Personal Computer
? Data Communications
? Medical Equipment
? Test Equipment
? Instrumentation
SPECIFICATIONS
GENERAL
Current Rating: 5A, UL and CSA 2.5A, VDE and
SEMKO
Nominal Voltage: 250V
Temperature Range: - 55°C to 65°C
Dielectric Strength: 2000V @ 1 minute
MATERIALS
Housing: Black, molded thermoplastic, UL 94V-0
Male Pins: Copper alloy, nickel plated
PC Terminals: Copper alloy, tin plated
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
